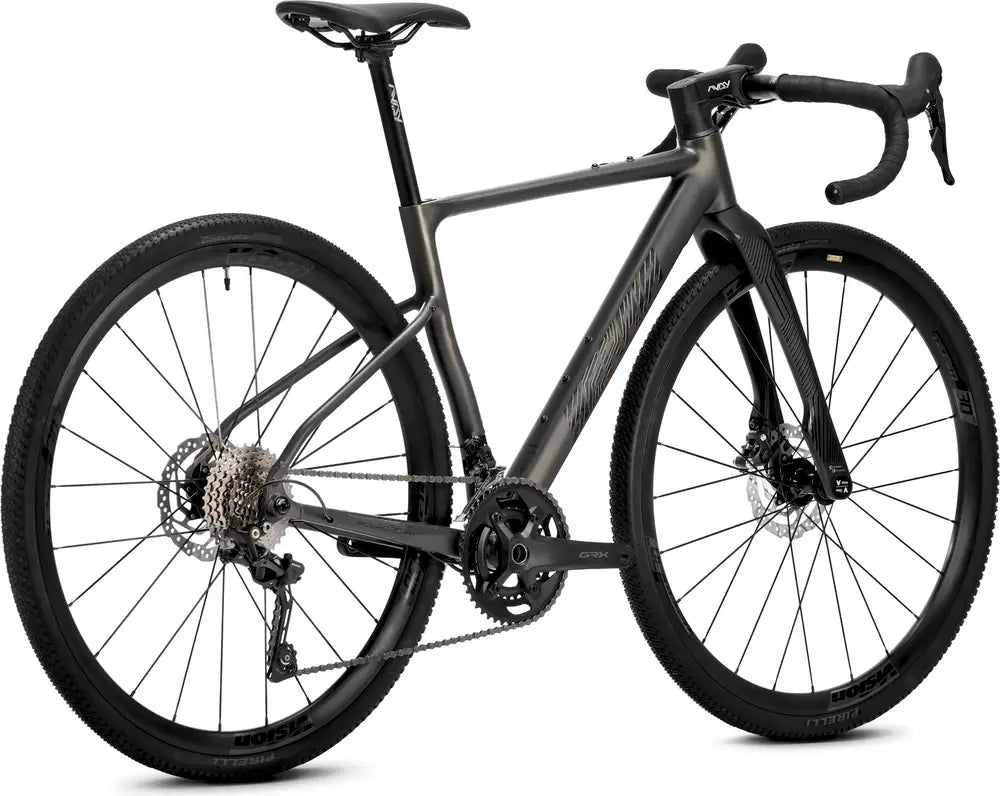

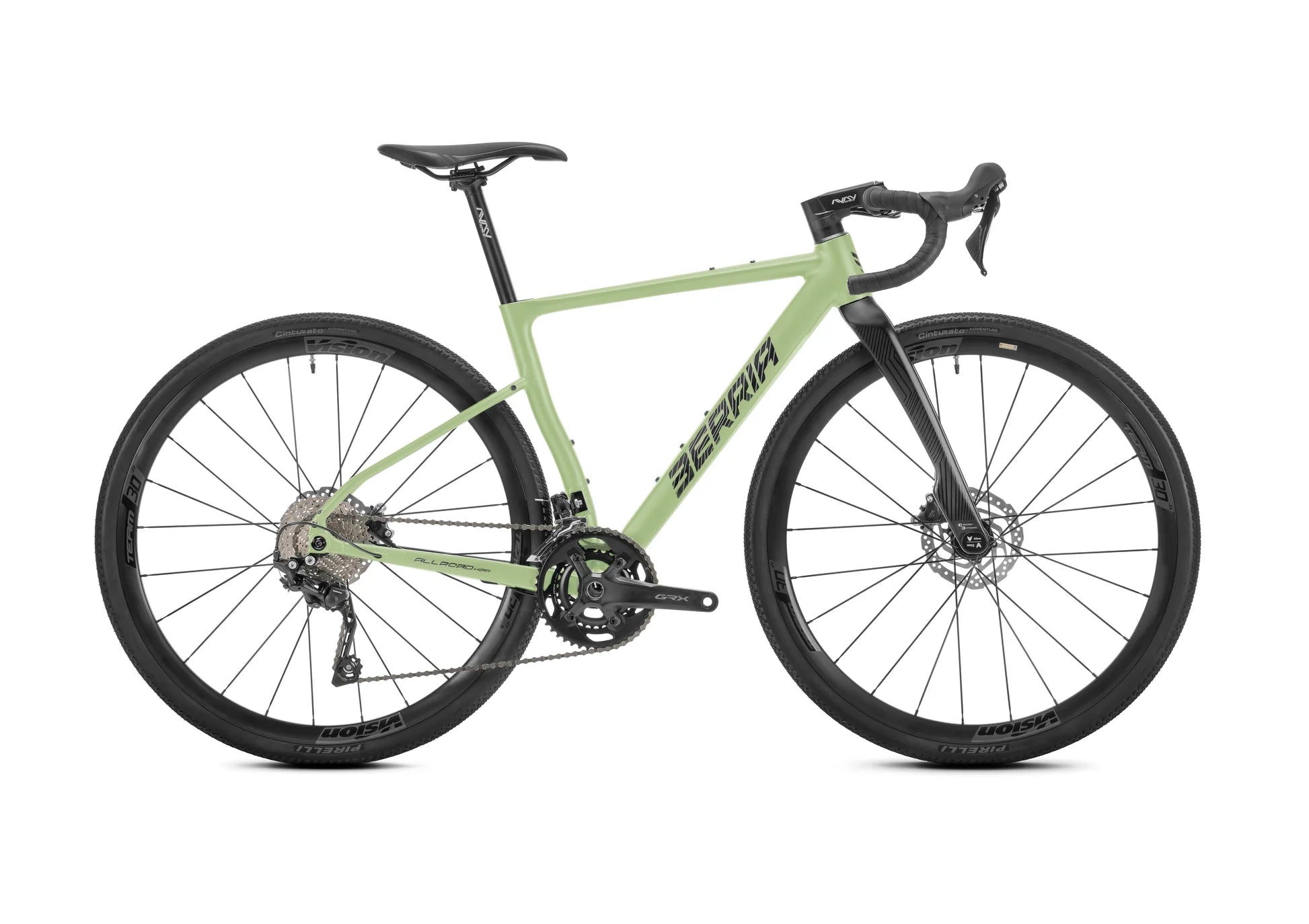

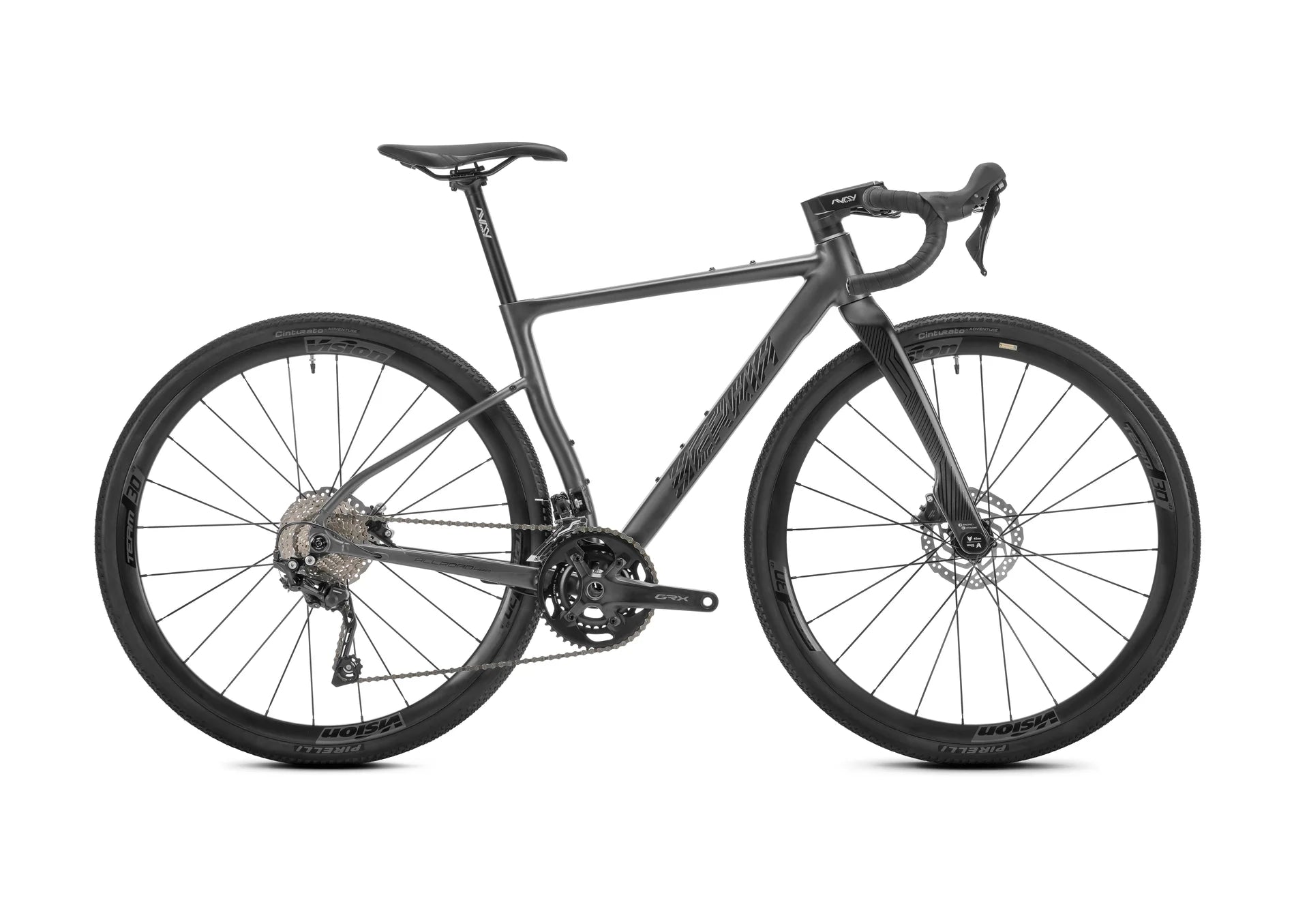

Berria Allroad HPR GRX 400

Specifications

• Frame

  Allroad HP, Gravel Type 1-2 Geometry BGC, Aluminum 3BS 6061 Hydroforming, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2" - 1-1/2", Flat Mount 140mm, 700x42c maximum tire, Thru axle 12x142mm, UDH Standard, weight: 1900gr

• Fork

  Allroad EVO, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered, Flat Mount Standard max. 160mm disc, 700x44c maximum tire, Flip-chip adjust 45-51mm fork rake, 405mm axle to crown, Thru axle 12x100mm, weight: 500gr

• Material

  Aluminum 3BS 6061 Hydroforming

• Handlebar

  Avanforce 3 Gravel, Alloy 6061, Ø31.8, width: 400, 420, 440mm, weight: 330gr

• Seatpost

  Avanforce AF3, Aluminum 6061, 0 offset, Ø27.2, length: 350,400mm, weight: 255gr

• Saddle

  Selle Royal 2058HRN, Steel rails, length: 285mm, width: 145mm, weight: 315gr

• Derailleur hanger

  Universal Derailleur Hanger

• Wheels

  Vision Team 30, Aluminum rim, TLR, inner width 23mm, rim height 30mm, Center Lock, weight: 1920gr.

• Tires

  Pirelli Cintauro Adventure, 700x40C, TLR, 60 TPI, ProWALL Gravel, Pro Compound

• Shift lever

  SHIMANO GRX400, ST-RX400, 10s

• Rear derailleur

  SHIMANO GRX400, RD-RX400, 10s

• Front derailleur

  SHIMANO GRX400, FD-RX400-F, 10s

• Crankset

  SHIMANO GRX, FC-RX600-10 Crankset 46/30T, 170-172.5-175

• Chain

  SHIMANO CN-HG54 116 LINKS

• Cassette

  SHIMANO CS-HG62-10, 11-36T, 10s

• Bottom bracket

  BB86 Press Fit Shimano, Black

• Brake

  SHIMANO BR-RX400 Hydraulic Disc Brake

  *The manufacturer reserves the right to change website information without notice, including specifications, models, colors, and materials.

  *Images are for illustrative purposes only and may not correspond to the product description.

  Geometry



  	XS	S	M	L	XL
  	155-165 cm	165-175 cm	175-185 cm	185-192 cm	>192 cm
  1 Seat tube	460 mm	484 mm	508 mm	532 mm	556 mm
  2 Top tube	525.1 mm	542.4 mm	555 mm	570 mm	592.4 mm
  3 Head angle	70°	70.5°	71°	71.5°	72°
  4 Seat tube angle	74°	73.75°	73.5°	73.5°	73.5°
  5 Wheelbase	1006.5 mm	1018.1 mm	1023.9 mm	1035 mm	1053 mm
  6 Dropout	416 mm	416 mm	416 mm	416 mm	416 mm
  7 Head tube	100 mm	125 mm	130 mm	150 mm	177 mm
  8 Bottom bracket dropout	77 mm	77 mm	75 mm	75 mm	75 mm
  9 Trail	82 mm	78.7 mm	75.3 mm	72 mm	68.7 mm
  10 Fork offset	45/51 mm	45/51 mm	45/51 mm	45/51 mm	45/51 mm
  11 Fork length	405 mm	405 mm	405 mm	405 mm	405 mm
  12 Reach	371.4 mm	378.7 mm	387.1 mm	396.1 mm	410.3 mm
  13 Stack	535.9 mm	561.5 mm	566.2 mm	587 mm	614 mm
