Focus

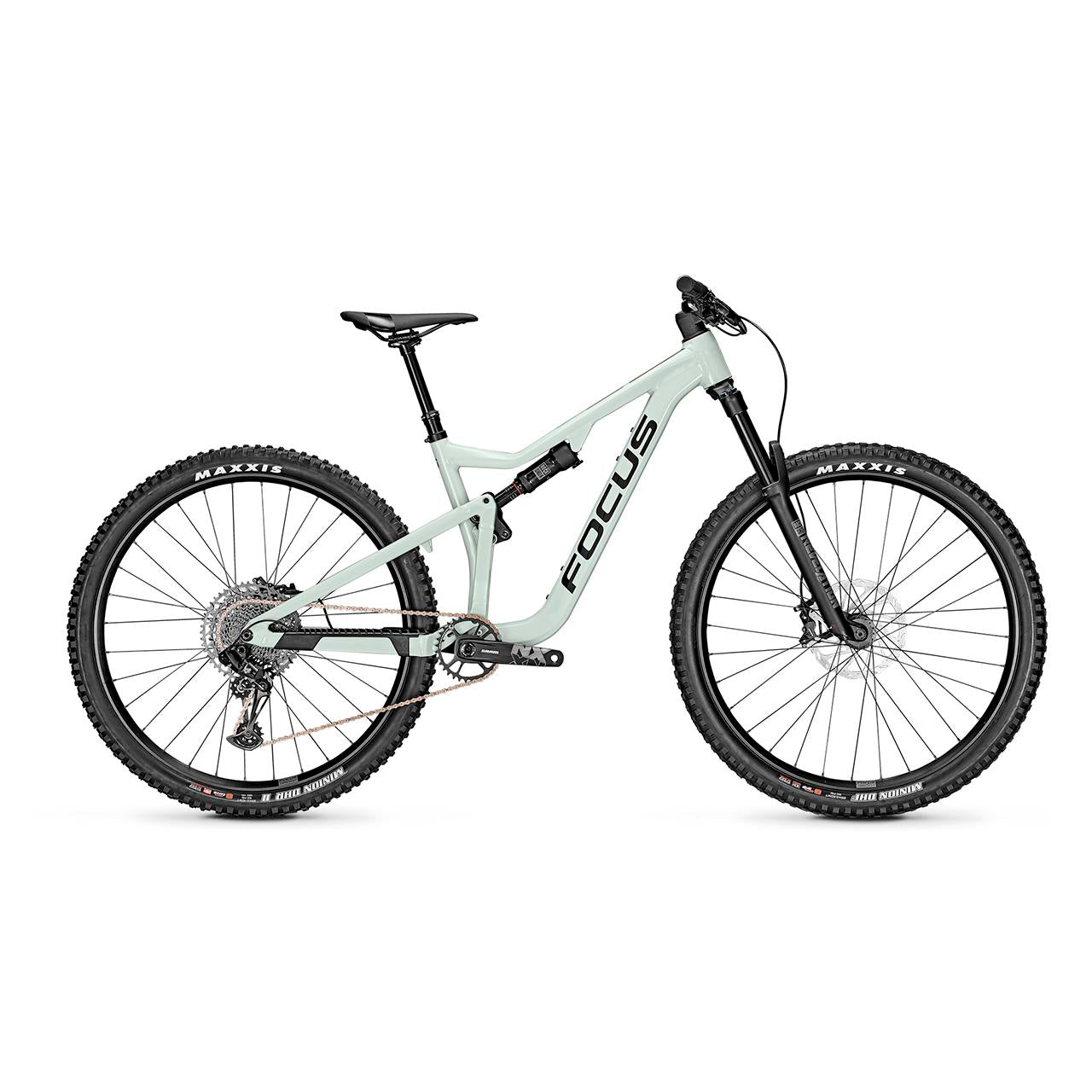

Focus Jam 6.8

Focus Jam 6.8

€1.699,00
€2.999,00 €1.699,00
On offer Worn out
Taxes included. Shipping costs Calculate the check-out.
Size

Kinematics for a great progression

With L'Update of our well -known F.O.L.D., your jam is ready to pieces the trails even more. We have maintained the welcome sensitivity of the F.O.L.D. But changed the positioning of our kinematic within the frame for a strong resistance to the race fund. The characteristics are completely progressive, which translates into a chassis that offers a lot of stability on accidental soils. This allows you to manage any path while the frame still offers comfort for long laps. In addition, Jam's lower standover gives you more space to play on the paths.

Specific


Chassis
7005 Hydroformed Aluminium, 3D Forging, 150 mm F.O.L.D. Gen2 Kinematics, 148x12 mm Thru Axle, Internal Cable Routing, Post Mount 180 mm

Fork
Fox 36 Float Performance 29, grip 3-post, 110x15 mm, 44 mm rake

Fork excursion
150 mm

Shock absorber
Fox Float Dps Performance, 3-post lever, 210/55 mm, hardware: 25.0 x 8mm, custom tune

Change
Shimano Deore XT M8100, 12-Speed

Rear derailler
Shimano Deore XT M8100, 12-Speed

Cassette
Shimano Deore M6100, 12-Speed

Chain
Shimano Deore CN-M6100, 12-Speed

Char
Shimano Deore XT FC-M8100, Hollowtech II

Transmission system
Vorne: 32, Hinten: 10-51

Central movement
BSA

Handlebar
Raceface Chester 35, Aluminium, 780 mm, Rise: 35 mm, Backsweep: 8th

Knob
Raceface throws grip

Handlebar attack
Focus C.I.S. 50 mm, 0 °, 35 mm, Aluminium

Steering series
ACROS ZS56/ZS56 (ICR), Focus C.I.S. Integrated

Saddle
Fi'zi: K Taiga

Bra
Post Modern Dropper Post PM-171, 31.6 mm

Front / rear brakes
Shimano XT M8120, 4 Piston / Shimano XT M8120, 4 Piston

Front brake disc
203 mm

Rear brake disc
203 mm

Wheels
DT Swiss M1900, 622-30, 148x12 mm / 110x15 mm

Front / rear tires
Maxxis minion DHF, 2.5 WT 3C Exo TR, 63-622 / Maxxis Mini DHR II, 2.4 3C Exo+, 61-622

Paso (kg)
16.2 kg ()

Weight of the permitted system
110 kg

* Subject to technical changes without notice. Excluding errors and omissions.
** Weight in the Size M, standard and without pedals specifications.

Geometries

S M L XL
Size in mm 390 420 450 470
Handlebar width 780 780 780 780
Handbridge attachment length 50 50 50 50
Length patella 170 170 170 170
Reggisella length 390 440 440 490
TO Seat tube length 390 420 450 470
B Top tube length 570 603 637 672
C Steering angle (°) 65.5 65.5 65.5 65.5
D Seat Tube corner (°) 76.5 76.5 76.5 76.5
AND Length of the horizontal sheath 435 435 435 435
F Bottom Bracket Drop 24 24 24 24
G Head Tube length 90 100 120 140
H Fork length 561 561 561 561
THE Offset fork 44 44 44 44
J Steps 1166 1200 1238 1277
K Stack 603 612 630 648
L Reach 425 455 485 515
M Standover measurement 766 766 766 766
