Santa Cruz

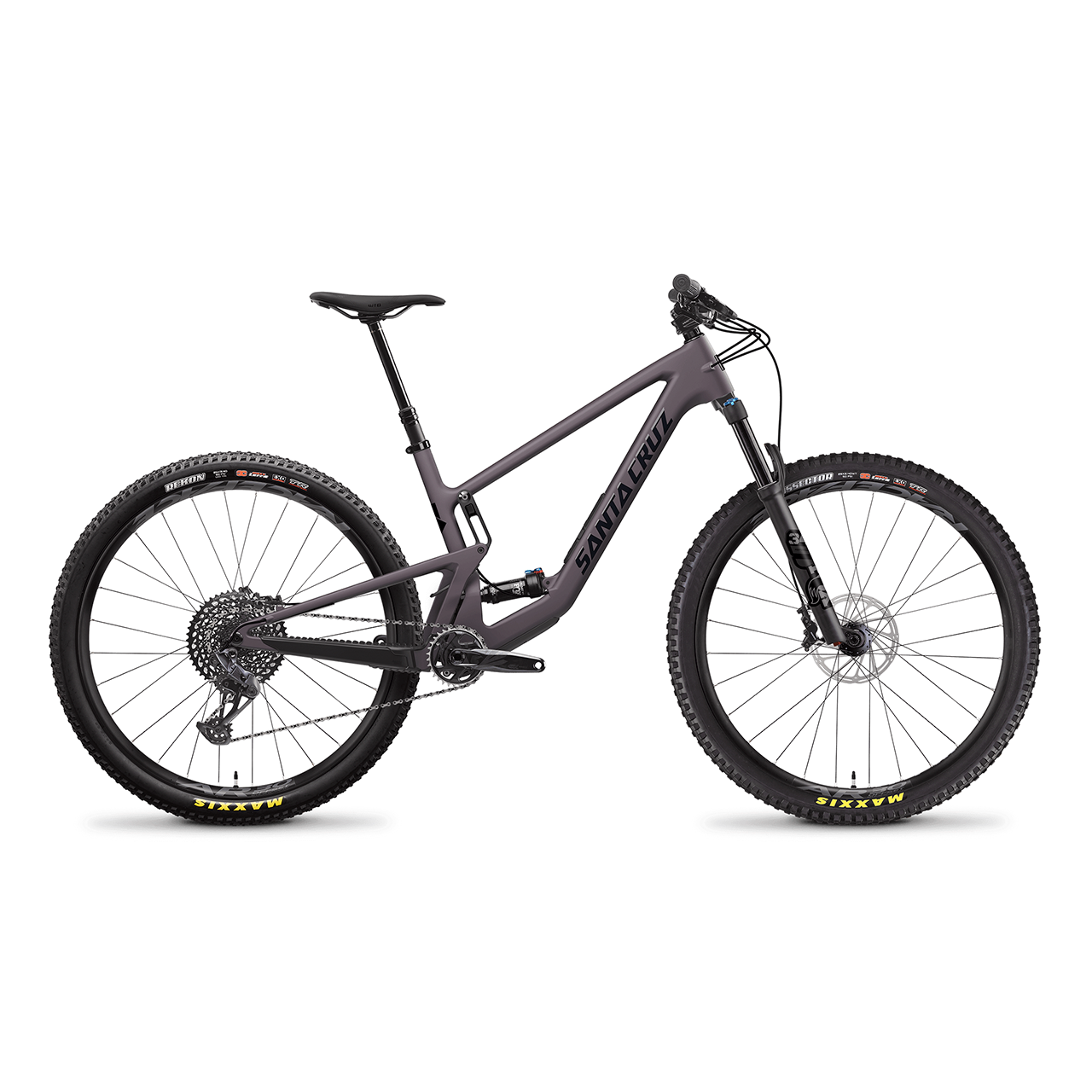

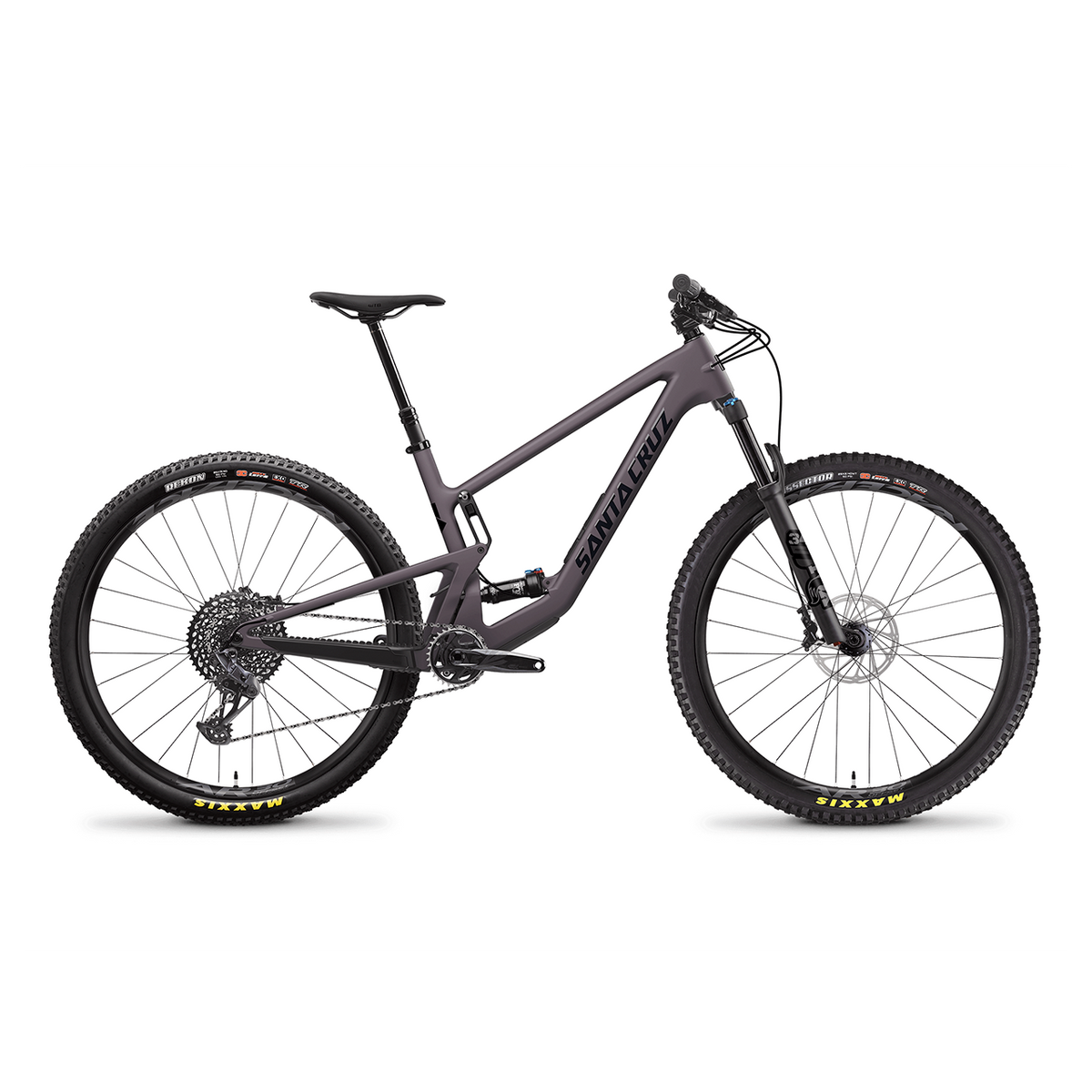

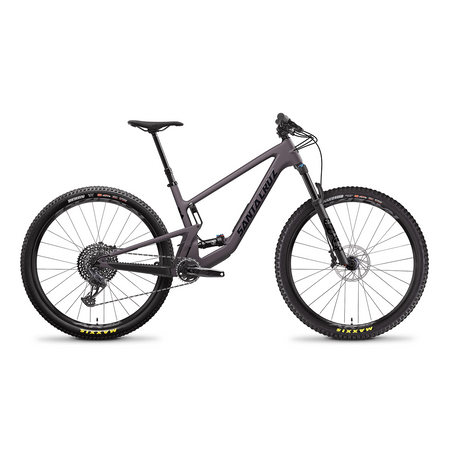

Santa Cruz Tallboy 5 C
Santa Cruz Tallboy 5 C
The XC bike of the downhiller!
The heel has earned a faithful sequel among those who are looking for a bike capable of resisting the incessant hammering of the warm "power hour" laps or at long days riding the best paths. The sophisticated VPP ™ suspension of the heel combine L'Pedal efficiency and the utmost ability to overcome the bumps. If an XC bike for gravitational cyclists has ever existed, the heel is that.
Specific
Material
Carbon c
Rear shock
Fox Float Performance DPS 190x45
Fork
Fox 34 Float Performance, 130mm
Rear Derailleur
SRAM GX EAGLE, 12SPD
Shifters
SRAM GX EAGLE, 12SPD
Cassette
SRAM XG1275 EAGLE, 12SPD, 10-50T
Chain
SRAM GX EAGLE, 12SPD
Bottom Bracket
Sram Dub 68/73mm Threaded BB
Headset
Creek 40 Is Integrated Headset dog
Rear tire
Maxxis Rekon 29 "X2.4" WT, 3C Maxxterra, Exo, TR
Front tire
Maxxis Dissector 29 "X2.4" WT, 3C Maxxterra, Exo, TR
Sealant
Reserve Tubeless Sealant
Front hub
DT Swiss 370, 15x110, 28h
Front rim
Raceface Ar Offset 30 29 "
Rear hub
DT Swiss 370, 12x148, XD, 36T, 28h
Rear rim
Raceface Ar Offset 30 29 "
Front Rotor
Avid Centerline 180mm
Rear Rotor
Avid Centerline 180mm
Brakes
SRAM G2 R
Crankset
SRAM GX EAGLE 148 DUS, 32T
Handlebars
Burgtec Ridewide Alley Bar, 800mm
Stem
BurgTec Enduro MK3, 42mm
Saddle
WTB Silverado Medium Chromo
Seatpost
SDG Tellis Dropper, 31.6
Grips
Santa Cruz Bicycles House GRIPS
Travel
130/120mm
Wheel size
29"
*The manufacturer reserves the right to change the information on the website without notice, including specifications, models, colors and materials.
*The images are for purely indicative purposes and may not correspond to the description of the product.
Geometries
XS | S | M | L | XL | XXL | |
---|---|---|---|---|---|---|
Reach | hi/lo | 405/403 | 430/428 | 455/453 | 475/473 | 495/493 | 520/518 |
Stack | hi/lo | 601/603 | 610/612 | 619/621 | 628/630 | 646/648 | 656/658 |
Head Tube Angle | hi/lo | 65.7/65.5 | 65.7/65.5 | 65.7/65.5 | 65.7/65.5 | 65.7/65.5 | 65.7/65.5 |
Seat Tube Length | 370/370 | 380/380 | 405/405 | 430/430 | 460/460 | 500/500 |
Front Center | hi/lo | 708/708 | 737/737 | 766/766 | 790/790 | 818/818 | 847/847 |
BB Height | hi/lo | 335/332 | 335/332 | 335/332 | 335/332 | 335/332 | 335/332 |
BB Drop | hi/lo | 38/41 | 38/41 | 38/41 | 38/41 | 38/41 | 38/41 |
Wheelbase | hi/lo | 1138/1138 | 1167/1167 | 1199/1199 | 1227/1227 | 1257/1258 | 1290/1291 |
Rear Center | hi/lo | 430/431 | 430/431 | 433/434 | 437/438 | 439/440 | 443/444 |
Head Tube Length | 95/95 | 105/105 | 115/115 | 125/125 | 145/145 | 155/155 |
Top Tube Length | hi/lo | 555/556 | 579/580 | 602/603 | 622/623 | 644/645 | 671/671 |
Seat Tube Angle | hi/lo | 76/75.7 | 76.3/76 | 76.7/76.4 | 76.8/76.6 | 77/76.8 | 77.1/76.8 |
Height Standover | hi/lo | 680/676 | 693/691 | 696/693 | 698/695 | 698/695 | 701/698 |
