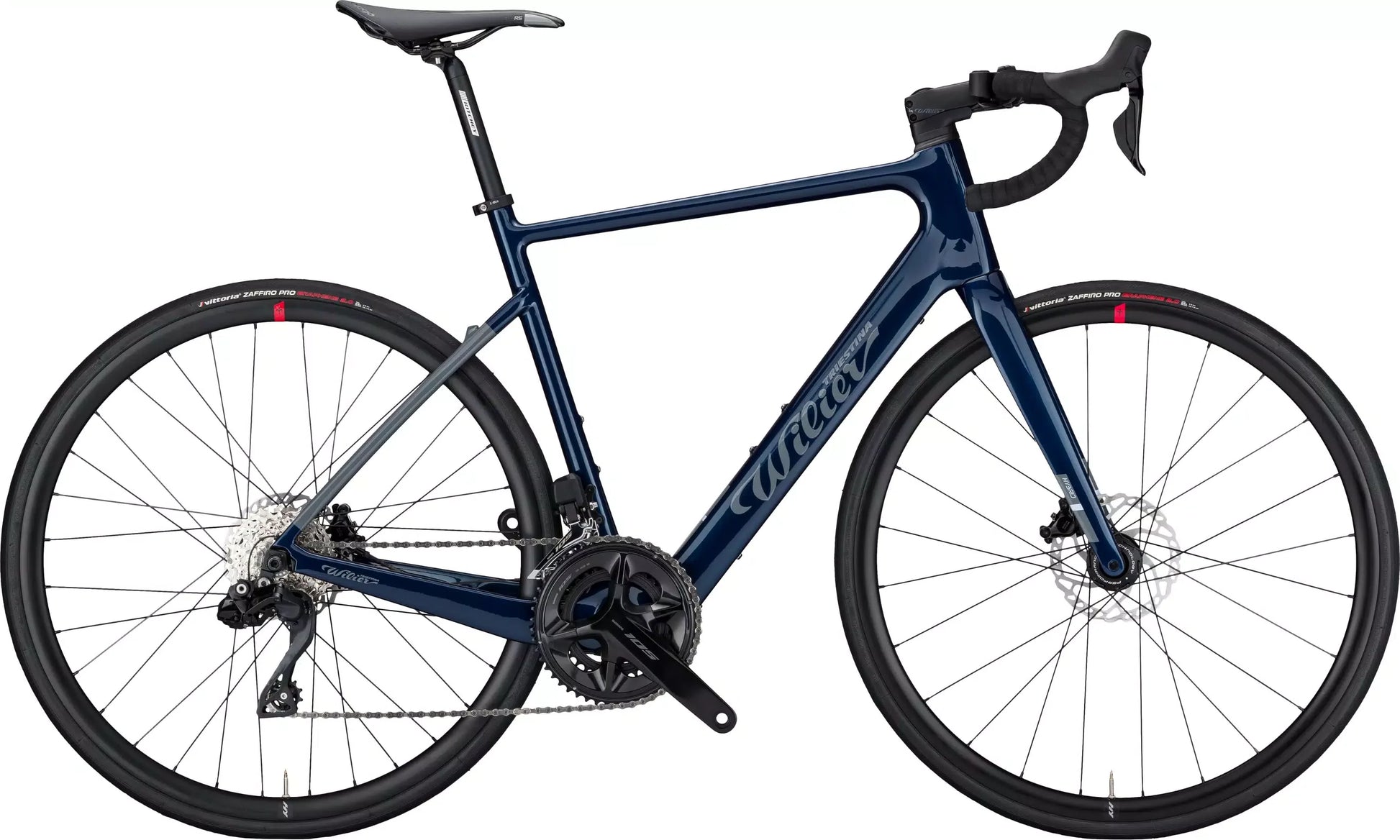

Wilier Garda Hybrid Shimano 105 Dì2

In full style Wilier have applied the pleasure of the pedal assisted also to our All Round bike dedicated to all those who love road bike without too many exasperations. The geometries devoted to comfort are declined in five sizes frame: xs, s, m, l, xl.

The result is an e-r bike with a clean design equipped with a completely integrated cables passage that inherits the shapes of the sporty version to the point of deceiving at the first glance. Garda Hybrid uses the tested and reliable Drive Unit Mahle X35+ with 250 WH motor inserted in the rear hub while the battery is housed in the oxlicity tube.

That climb impossible from today is no longer an obstacle, on the contrary, it becomes a real launch platform. A new perspective, a new way to look at the world and discover, or rediscover, a new dimension: the pleasure of pedaling without thoughts.

Transmission system: Mahle x35+, 40nm

Electrical system: Mahle ebikemotion x35+

Drums: 250Wh, 36V, Ant+ Connectivity

Display: iwoc

Chassis: Garda Hy - Carbon Monocoque Nhu Mod + High Impact Strens

Fork: Garda Hy - Carbon Monocoque Nhu Mod + High Impact Strens

Handlebar: Bar s

Handlebar attack: Coat of arms s

Steering series: Wilier Custom Bearings Superslim

Group: Shimano 105 R7150 DI2 2x12

Gearbox leve: Shimano 105 of2 12S ST-R7170

Brakes: Shimano 105 br-r7170

Rotor: Shimano 105 centers LOCK SM-RT70 160 mm / 140 mm

Derailler: Shimano 105 of2 FD-R7150

Change: Shimano 105 of2 12S RD-R7150

Char: Shimano 105 FC-R7100 50-34T

Central movement: Shimano Pressfit BB-GS500-PB

Cassette: Shimano 105 12S CS-R7100 11-34T

Chain: Shimano cn-m7100 12s

Wheels: Wilier Wheel ed 28ac alu

Covers: Vittoria Zaffiro Pro 4 700x28

Saddle: Priest kappa

Bra: Ritchey 2-Bolt Alley BBK

Pin: Thru axle 12x125 front

Chassis weight: 1420 g ± 5%

Fork: 400 g ± 5%

*The manufacturer reserves the right to change the information on the website without notice, including specifications, models, colors and materials.

*The images are for purely indicative purposes and may not correspond to the description of the product.

	XS	Sort	M	THE	XL
C/c (cm)	37.5	40.5	44.5	47.5	51.5
L (cm)	50.5	52.5	54.4	56.1	57.8
H (cm)	43	46	50	53	57
A (°)	75	74.5	74	73.5	73
L1 (cm)	40.6	40.6	40.8	41	41.1
H1 (cm)	10.4	12.1	14.5	16.6	18.5
A1 (°)	70.5	71	71.5	72	72.5
Reach (mm)	365	376	383	390	395
Stack (mm)	515	532	555	576	595
